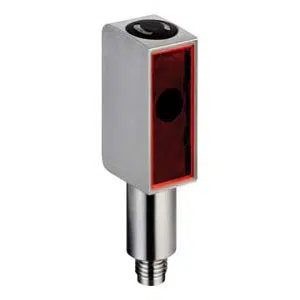

Leuze HRTR 53/66-S-S8 | 50107503
Technical Specifications of Leuze HRTR 53/66-S-S8 50107503:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.005 ... 0.2 m |
| Light Source | LED, Red |
Leuze two outputs, M8 connector diffuse sensor HRTR 53/66-S-S8 - 50107503 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | HYGIENE design Small light spot (S) |
| Sensing Distance | 0.005 ... 0.2 m |
| Beam path | Divergent |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Dark switching (PNP)/light switching (NPN) |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Stainless steel |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 14 mm x 35.6 mm x 20.3 mm |
| Housing material | Stainless steel |
| Lens cover material | Plastic with scratch-resistant Indium protective coating |
| Housing color | Silver |
| Type of display | LED |
| Ambient temperature, operation | -30 ... 55 °C |
| Ambient temperature, storage | -30 ... 55 °C |
| Degree of protection | IP 67/IP 69K |
Send Us an Email for -30 ... 55 °C Silver part no: LED with budget-friendly prices. Technical Attributes of Silver, LED includes Cubic, Design Diffuse reflection principle with background suppression, 14 mm x 35.6 mm x 20.3 mm Dimension, LED, Red Light source, Transistor, Push-pull Switching Outputs 1, Light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC Supply voltage UB, 0.005 ... 0.2 m Sensing Distance, Connector Type of connection, Stainless steel Housing material, IP 67/IP 69K degree of protection. Now's the Time to Secure Quote for your requirement of -30 ... 55 °C. Rest assured, our pricing and support outshine other Suppliers.
