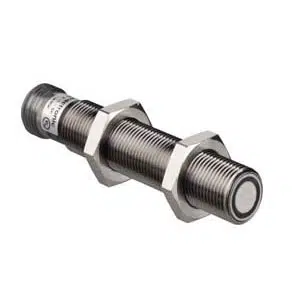

Leuze HRTU 412/2NO.2-S-S12 | 50113997
Technical Specifications of HRTU 412/2NO.2-S-S12 50113997:
| Spec | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M12 x 1 mm |
| Dimensions | 12 mm x 70 mm |
| Operating Range | 0.01 ... 0.2 m |
Leuze 50 Hz Switching frequency Ultrasonic Sensor HRTU 412/2NO.2-S-S12, 50113997 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M12 x 1 mm |
| Dimension | 12 mm x 70 mm |
| Operating range | 0.01 ... 0.2 m |
| Operating principle | Diffuse reflection principle with background suppression |
| Ultrasonic frequency | 380 kHz |
| Opening angle | - |
| Adjustment range | - |
| Resolution | - |
| Supply voltage UB | 12 ... 30 V, DC |
| Number of Connections | - |
| Switching voltage | - |
| Switching output 1 | Transistor, NPN |
| Switching frequency | 50 Hz |
| Interface Type | - |
| Response time | 10 ms |
| Connection 1 Function | Signal OUT Teach input Voltage supply |
| Type of connection | Connector |
| No. of Pin | 4 -pin |
| Housing material | Metal |
| Ambient temperature, operation | -10 ... 60 °C |
| Ambient temperature, storage | -40 ... 85 °C |
| Degree of protection | IP 67 |
IndMALL Automation Offers Leuze 50 Hz Switching frequency Ultrasonic Sensor HRTU 412/2NO.2-S-S12 50113997 at unbeatable prices. The Main Technical Parameters of HRTU 412/2NO.2-S-S12 are 12 mm x 70 mm Dimensions, 0.01 ... 0.2 m Operating Range, 380 kHz Ultrasonic Frequency, - Opening Angle, Transistor, NPN Switching Output, Connector, M12 x 1 mm Thread size, 4 -pin, Metal Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 50 Hz Switching frequency Ultrasonic Sensor.
