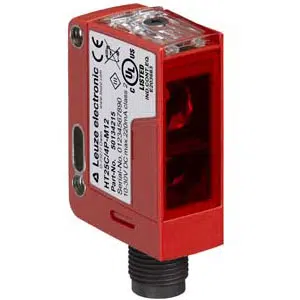

Leuze HT25C-150F/4P-M12 | 50142419

Technical Specifications of Leuze HT25C-150F/4P-M12 50142419:

Spec	Value
Design	Cubic
Operating Principle	Diffuse reflection principle with background suppression
Sensing Distance	0 ... 0.15 m
Light Source	LED, Red

Leuze 0–0.15 m Operating range diffuse sensor HT25C-150F/4P-M12 - 50142419 Technical Specifications:

Specification	Value
Design	Cubic
Operating principle	Diffuse reflection principle with background suppression
Special version	Permanently set range
Sensing Distance	0 ... 0.15 m
Beam path	-
Light source	LED, Red
Wavelength	640 nm
Type of light spot geometry	-
Supply voltage UB	10 ... 30 V, DC, Incl. residual ripple
Switching Output 1	Transistor, PNP
Switching principle	Light switching
Switching Output 2	Transistor, PNP
Switching principle	Dark switching
Switching frequency	1,000 Hz
Response time	0.5 ms
Function	Signal OUT Voltage supply
Type of connection	Connector
Thread size	M12
Type	Male
Material	Metal
No. of pins	4 -pin
Encoding	A-coded
Dimension (W x H x L)	15 mm x 42.7 mm x 30 mm
Housing material	Plastic
Lens cover material	Plastic
Housing color	Red
Type of display	LED
Ambient temperature, operation	-40 ... 60 °C
Ambient temperature, storage	-40 ... 70 °C
Degree of protection	IP 66/IP 67

Call us for HT25C-150F/4P-M12 part no.50142419 with budget-friendly prices. Technical Attributes of HT25C-150F/4P-M12 are Cubic, Design Diffuse reflection principle with background suppression, 15 mm x 42.7 mm x 30 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0 ... 0.15 m Sensing Distance, Connector Type of connection, Plastic Housing material, IP 66/IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 0–0.15 m Operating range diffuse sensor. Rest assured, our pricing and support outshine other Suppliers.
