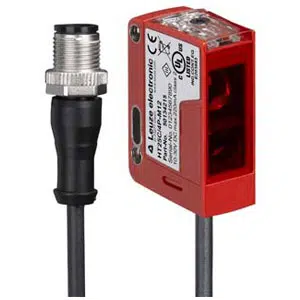

Leuze HT25C.XL/2N-200-M8 | 50139623
Technical Specifications of Leuze HT25C.XL/2N-200-M8 50139623:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0 ... 0.6 m |
| Light Source | LED, Red |
Leuze 200 mm Cable with connector diffuse sensor HT25C.XL/2N-200-M8 - 50139623 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | Extra long light spot (XL |
| Sensing Distance | 0 ... 0.6 m |
| Beam path | Divergent |
| Light source | LED, Red |
| Wavelength | 640 nm |
| Type of light spot geometry | Rectangular |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, NPN |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, NPN |
| Switching principle | Dark switching |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | - |
| Wire cross section | 0.2 mm² |
| Thread size | M8 |
| Type | Male |
| Material | PUR |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67/IP 69K |
Mail Us for your needs in Leuze 200 mm Cable with connector diffuse sensor HT25C.XL/2N-200-M8 part no: 50139623 with budget-friendly prices. The Main Technical Parameters of HT25C.XL/2N-200-M8, 50139623 include Cubic, Design Diffuse reflection principle with background suppression, 15 mm x 42.7 mm x 30 mm Dimension, LED, Red Light source, Transistor, NPN Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0 ... 0.6 m Sensing Distance, Cable with connector Type of connection, Plastic Housing material, IP 67/IP 69K degree of protection. Customize Your Experience with a Quote for your requirement of Leuze 200 mm Cable with connector diffuse sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
