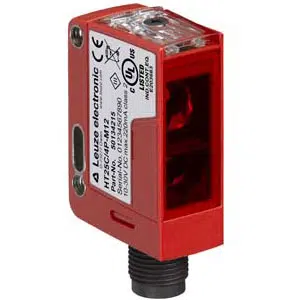

Leuze HT25CI.SLHF/4X-M12 | 50146385

Technical Specifications of Leuze HT25CI.SLHF/4X-M12 50146385:

Spec	Value
Design	Cubic
Operating Principle	Diffuse reflection principle with background suppression
Sensing Distance	0 ... 0.8 m
Light Source	LED, Infrared

Leuze 0–0.8 m operating range diffuse sensor HT25CI.SLHF/4X-M12 - 50146385 Technical Specifications:

Specification	Value
Design	Cubic
Operating principle	Diffuse reflection principle with background suppression
Special version	Suppression of HF illumination (LED)
Sensing Distance	0 ... 0.8 m
Beam path	-
Light source	LED, Infrared
Wavelength	850 nm
Type of light spot geometry	-
Supply voltage UB	10 ... 30 V, DC, Incl. residual ripple
Switching Output 1	Transistor, PNP
Switching principle	Light switching
Switching Output 2	-
Switching principle	-
Switching frequency	250 Hz
Response time	2 ms
Function	Signal OUT Voltage supply
Type of connection	Connector
Thread size	M12
Type	Male
Material	PUR
No. of pins	4 -pin
Encoding	A-coded
Dimension (W x H x L)	15 mm x 42.7 mm x 30 mm
Housing material	Plastic
Lens cover material	Plastic
Housing color	Red
Type of display	LED
Ambient temperature, operation	-40 ... 60 °C
Ambient temperature, storage	-40 ... 70 °C
Degree of protection	IP 66/IP 67
