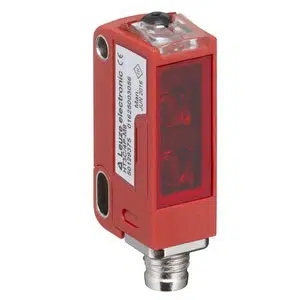

Leuze HT3C.S/4P-M8 | 50129379
Technical Specifications of Leuze HT3C.S/4P-M8 50129379:
| Spec | Value |
|---|---|
| Design | Cubic |
| Sensing Distance | 0.005 ... 0.2 m |
| Light Source | LED, Red |
| Wavelength | 650 nm |
Leuze 0.005 to 0.2 m Operating range Diffuse Sensor HT3C.S/4P-M8 - 50129379 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | Small light spot (S) |
| Sensing Distance | 0.005 ... 0.2 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 650 nm |
| Type of light spot geometry | - |
| Light spot size [at sensor distance] | - |
| Measurement range | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Metal |
| No. of pins | 4 -pin |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic |
| Plastic housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67/IP 69K |
IndMALL Automation Dealing offers HT3C.S/4P-M8 50129379 at unbeatable prices. The Main Technical Parameters of HT3C.S/4P-M8 are Cubic, Design Diffuse reflection principle with background suppression, 11.4 mm x 34.2 mm x 18.3 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs1, Light switching Switching principle, Connector, M8 Thread size, PC-ABS, Plastic Housing material, IP 67/IP 69K degree of protection. Take the First Step with a Quote for your requirement of Leuze 0.005 to 0.2 m Operating range Diffuse Sensor. Choose us for unparalleled pricing and support over other Dealers & Distributors.
