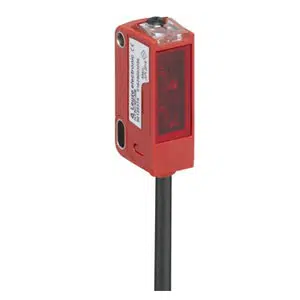

Leuze HT3CL2/4P | 50129396
Technical Specifications of Leuze HT3CL2/4P 50129396:
| Spec | Value |
|---|---|
| Design | Cubic |
| Sensing Distance | 0.015 ... 0.55 m |
| Light Source | Laser, Red |
| Wave length | 650 nm |
Leuze 300 ms Readiness delay Diffuse sensor HT3CL2/4P - 50129396 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | - |
| Sensing Distance | 0.015 ... 0.55 m |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 650 nm |
| Type of light spot geometry | Round |
| Light spot size [at sensor distance] | 1 mm [550 mm] |
| Measurement range | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 3,000 Hz |
| Response time | 0.16 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Wire cross section | 0.2 mm² |
| Thread size | - |
| Type | - |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67/IP 69K |
Talk to Our Engineer for HT3CL2/4P 50129396 with exclusive offers. Core System Specifications of HT3CL2/4P are Cubic, Design Diffuse reflection principle with background suppression, 11.4 mm x 34.2 mm x 18.3 mm Dimension, Laser, Red Light source, Transistor, PNP Switching Outputs1, Light switching Switching principle, Cable, PUR Sheathing material, -, Plastic Housing material, IP 67/IP 69K degree of protection. Don't Miss Out on a Quote for your requirement of Leuze 300 ms Readiness delay Diffuse sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
