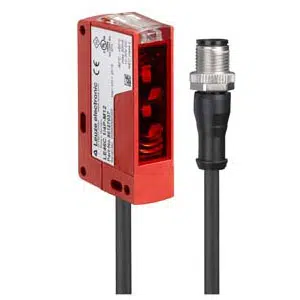

Leuze HT46CI.01/4X-200-M12 | 50132617
Technical Specifications of Leuze HT46CI.01/4X-200-M12 50132617:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.005 ... 1.2 m |
| Light Source | LED, Infrared |
Leuze 0.005-1.2 m Operating range diffuse sensor HT46CI.01/4X-200-M12 - 50132617 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | AS-Interface, connection via coupling module Reflective vest suppression in the background |
| Sensing Distance | 0.005 ... 1.2 m |
| Beam path | Focused |
| Light source | LED, Infrared |
| Wavelength | 860 nm |
| Type of light spot geometry | Rectangular |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 250 Hz |
| Response time | 2 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | - |
| Wire cross section | 0.2 mm² |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 / IP 69K |
Talk to Our Engineer for HT46CI.01/4X-200-M12 part no.50132617 at competitive rates. Here are the brief Technical Specifications of HT46CI.01/4X-200-M12 are Cubic, Design Diffuse reflection principle with background suppression, 20.5 mm x 76.3 mm x 44 mm Dimension, LED, Infrared Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.005 ... 1.2 m Sensing Distance, Cable with connector Type of connection, Plastic Housing material, IP 67 / IP 69K degree of protection. It's Time to get a Quote for your requirement of Leuze 0.005-1.2 m Operating range diffuse sensor. We guarantee unmatched pricing and unparalleled support compared to other Dealers.
