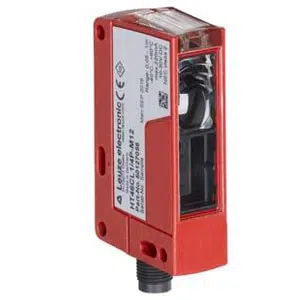

Leuze HT46CL2/2N-M12 | 50134610

Technical Specifications of Leuze HT46CL2/2N-M12 50134610:

Spec	Value
Design	Cubic
Operating Principle	Diffuse reflection principle with background suppression
Sensing Distance	0.05 ... 1 m
Light Source	Laser, Red

Leuze 20.5 mm x 76.3 mm x 44 mm Dimension diffuse sensor HT46CL2/2N-M12 - 50134610 Technical Specifications:

Specification	Value
Design	Cubic
Operating principle	Diffuse reflection principle with background suppression
Special version	-
Sensing Distance	0.05 ... 1 m
Beam path	-
Light source	Laser, Red
Wavelength	655 nm
Type of light spot geometry	-
Supply voltage UB	10 ... 30 V, DC, Incl. residual ripple
Switching Output 1	Transistor, NPN
Switching principle	Light switching
Switching Output 2	Transistor, NPN
Switching principle	Dark switching
Switching frequency	500 Hz
Response time	1 ms
Function	Signal OUT Voltage supply
Type of connection	Connector
Thread size	M12
Type	Male
Material	Plastic
No. of pins	4 -pin
Encoding	A-coded
Dimension (W x H x L)	20.5 mm x 76.3 mm x 44 mm
Housing material	Plastic
Lens cover material	Plastic / PMMA
Housing color	Red
Type of display	LED
Ambient temperature, operation	-40 ... 60 °C
Ambient temperature, storage	-40 ... 70 °C
Degree of protection	IP 67 / IP 69K

Obtain a Quote for Leuze 20.5 mm x 76.3 mm x 44 mm Dimension diffuse sensor HT46CL2/2N-M12 part no: 50134610 at economical prices. Specifications Overview for HT46CL2/2N-M12, 50134610 reveals Cubic, Design Diffuse reflection principle with background suppression, 20.5 mm x 76.3 mm x 44 mm Dimension, Laser, Red Light source, Transistor, NPN Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.05 ... 1 m Sensing Distance, Connector M12, PC-PBT Housing material, IP 67 / IP 69K degree of protection. Take the First Step with a Quote for your requirement of Leuze 20.5 mm x 76.3 mm x 44 mm Dimension diffuse sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors..
