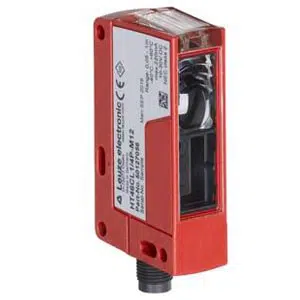

Leuze HT46CL2/6G-M12 | 50136986
Technical Specifications of Leuze HT46CL2/6G-M12 50136986:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.05 ... 1 m |
| Light Source | Laser, Red |
Leuze 655 nm Wavelength diffuse sensor HT46CL2/6G-M12 - 50136986 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | - |
| Sensing Distance | 0.05 ... 1 m |
| Beam path | - |
| Light source | Laser, Red |
| Wavelength | 655 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Dark switching (PNP)/light switching (NPN) |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 / IP 69K |
IndMALL dealing Leuze 655 nm Wavelength diffuse sensor HT46CL2/6G-M12 part no: 50136986 at affordable rates. Core System Specifications of HT46CL2/6G-M12, 50136986 feature Cubic, Design Diffuse reflection principle with background suppression, 20.5 mm x 76.3 mm x 44 mm Dimension, Laser, Red Light source, Transistor, Push-pull Switching Outputs 1, Light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.05 ... 1 m Sensing Distance, Connector M12, PC-PBT Housing material, IP 67 / IP 69K degree of protection. Take the First Step with a Quote for your requirement of Leuze 655 nm Wavelength diffuse sensor. Our commitment to better pricing and exceptional support sets us apart from other Distributors.
