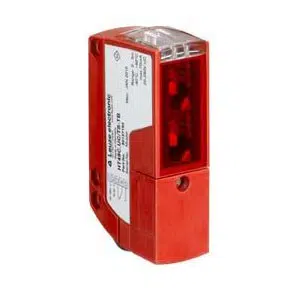

Leuze HT49C/4P-TB | 50134461
Technical Specifications of Leuze HT49C/4P-TB 50134461:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.005 ... 3 m |
| Light Source | LED, Red |
Leuze Terminal Type of connection diffuse sensor HT49C/4P-TB - 50134461 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | - |
| Sensing Distance | 0.005 ... 3 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 630 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 250 Hz |
| Response time | 2 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Terminal |
| Type of terminal | Spring-cage terminal |
| No. of pins | 5 -pin |
| Dimension (W x H x L) | 31 mm x 104 mm x 55.5 mm |
| Housing material | Plastic |
| Metal housing | PC |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Operational controls | Multiturn potentiometer Teach button |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
Call us for Leuze Terminal Type of connection diffuse sensor HT49C/4P-TB part no: 50134461 at the best rates. Technical Attributes of HT49C/4P-TB, 50134461 are Cubic, Design Diffuse reflection principle with background suppression, 31 mm x 104 mm x 55.5 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.005 ... 3 m Sensing Distance, Terminal Type of connection, Plastic Housing material, IP 67 degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze Terminal Type of connection diffuse sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
