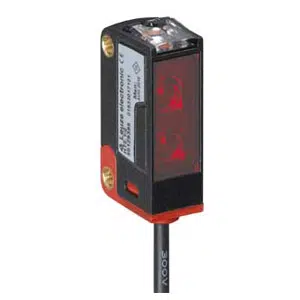

Leuze HT5.1/2 | 50129399
Technical Specifications of HT5.1/2 50129399:
| Spec | Value |
|---|---|
| Design | Cubic |
| Sensing Distance | 0.005 ... 0.4 m |
| Light Source | LED, Red |
| Wavelength | 645 nm |
Leuze 2000 mm cable connection Diffuse sensors HT5.1/2 - 50129399 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.005 ... 0.4 m |
| Beam path | Focused |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Type of light spot geometry | Round |
| Focal distance | 200 mm |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output | Transistor, NPN |
| Switching principle | Light switching |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.2 mm² |
| Dimension (W x H x L) | 11.4 mm x 32.1 mm x 17.8 mm |
| Housing material | Plastic |
| Plastic housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Black Red |
| Type of display | LED |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
IndMALL Automation Dealing offers HT5.1/2 50129399 at unbeatable prices. The Main Technical Parameters of HT5.1/2 are Design, Design Supply voltage UB, Dimension (W x H x L) Dimension, Light source Light source, Switching principle Switching Outputs, Switching frequency Switching principle, Sensing Distance Sensing Distance, Type of connection Type of connection, Sheathing material Sheathing material, Housing material Housing material, Degree of protection degree of protection. Take the First Step with a Quote for your requirement of Leuze 2000 mm cable connection Diffuse sensors. Choose us for unparalleled pricing and support over other Dealers & Distributors.
