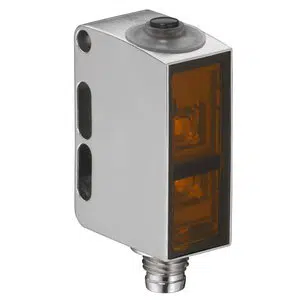

Leuze HT55C.XL/LG-M8 | 50148207
Technical Specifications of Leuze HT55C.XL/LG-M8 50148207:
Spec | Value |
---|---|
Design | Cubic |
Operating Principle | Diffuse reflection principle with background suppression |
Sensing Distance | 0.005 ... 0.05 m |
Light Source | LED, Red |
Leuze Stainless steel Material, 4 -pin diffuse sensor HT55C.XL/LG-M8 - 50148207 Technical Specifications:
Specification | Value |
---|---|
Design | Cubic |
Operating principle | Diffuse reflection principle with background suppression |
Special version | Extra long light spot (XL) Wash-Down design |
Sensing Distance | 0.005 ... 0.05 m |
Beam path | Divergent |
Light source | LED, Red |
Wavelength | 645 nm |
Type of light spot geometry | Rectangular |
Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
Switching Output 1 | Transistor, Push-pull |
Switching principle | IO-Link / light switching (PNP)/dark switching (NPN) |
Switching Output 2 | Transistor, Push-pull |
Switching principle | Dark switching (PNP)/light switching (NPN) |
Switching frequency | 1,000 Hz |
Response time | 0.5 ms |
Function | Signal IN Signal OUT Voltage supply |
Type of connection | Connector |
Thread size | M8 |
Type | Male |
Material | Stainless steel |
No. of pins | 4 -pin |
Encoding | - |
Dimension (W x H x L) | 14 mm x 35.4 mm x 25 m |
Housing material | Stainless steel |
Lens cover material | Plastic (PMMA+) with scratch-resistant Indium protective coating |
Housing color | Silver |
Type of display | LED |
Ambient temperature, operation | -40 ... 70 °C |
Ambient temperature, storage | -40 ... 70 °C |
Degree of protection | IP 67 / IP 68 / IP 69K |
Obtain a Quote for Leuze Stainless steel Material, 4 -pin diffuse sensor HT55C.XL/LG-M8 part no: 50148207 at economical prices. Specifications Overview for HT55C.XL/LG-M8, 50148207 reveals Cubic, Design Diffuse reflection principle with background suppression, 14 mm x 35.4 mm x 25 m Dimension, LED, Red Light source, Transistor, Push-pull Switching Outputs 1, IO-Link / light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.005 ... 0.05 m Sensing Distance, Connector M12, AISI 316L, DIN X2CrNiMo17132, W.No1.4404 Housing material, IP 67 / IP 68 / IP 69K degree of protection. Take the First Step with a Quote for your requirement of Leuze Stainless steel Material, 4 -pin diffuse sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors..
