Leuze HT55CL1/LG-M8 | 50148209 | Call Now for Quote

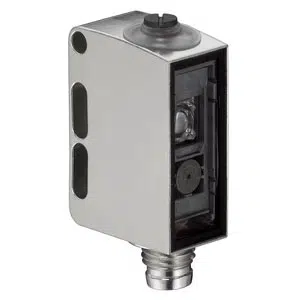

Leuze HT55CL1/LG-M8 | 50148209
Technical Specifications of Leuze HT55CL1/LG-M8 50148209:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.015 ... 0.4 m |
| Light Source | Laser, Red |
Leuze 10 mm x 10 mm Light spot size diffuse sensor HT55CL1/LG-M8 - 50148209 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | Wash-Down design |
| Sensing Distance | 0.015 ... 0.4 m |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 650 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Dark switching (PNP)/light switching (NPN) |
| Switching frequency | 3,000 Hz |
| Response time | 0.16 ms |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Stainless steel |
| No. of pins | 4 -pin |
| Encoding | - |
| Dimension (W x H x L) | 14 mm x 35.4 mm x 25 m |
| Housing material | Stainless steel |
| Lens cover material | Plastic (PMMA+) with scratch-resistant Indium protective coating |
| Housing color | Silver |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 70 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 / IP 68 / IP 69K |
IndMALL dealing Leuze 10 mm x 10 mm Light spot size diffuse sensor HT55CL1/LG-M8 part no: 50148209 at affordable rates. Core System Specifications of HT55CL1/LG-M8, 50148209 feature Cubic, Design Diffuse reflection principle with background suppression, 14 mm x 35.4 mm x 25 m Dimension, Laser, Red Light source, Transistor, Push-pull Switching Outputs 1, IO-Link / light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.015 ... 0.4 m Sensing Distance, Connector M12, AISI 316L, DIN X2CrNiMo17132, W.No1.4404 Housing material, IP 67 / IP 68 / IP 69K degree of protection. Take the First Step with a Quote for your requirement of Leuze 10 mm x 10 mm Light spot size diffuse sensor. Our commitment to better pricing and exceptional support sets us apart from other Distributors.
