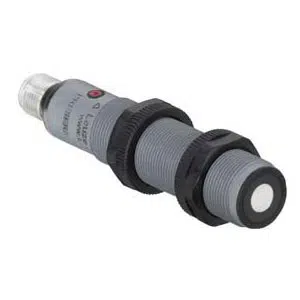

Leuze HTU318-1600.3/4PK-M12 | 50136088
Technical Specifications of HTU318-1600.3/4PK-M12 50136088:
| Spec | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M18 x 1 mm |
| Dimensions | 18 mm x 91.6 mm |
| Operating Range | 0.15 ... 1.6 m |
Leuze 2 Hz Switching frequency Ultrasonic Sensors HTU318-1600.3/4PK-M12, 50136088 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M18 x 1 mm |
| Dimension | 18 mm x 91.6 mm |
| Operating range | 0.15 ... 1.6 m |
| Operating principle | Diffuse reflection principle with background suppression |
| Ultrasonic frequency | 230 kHz |
| Opening angle | 8 ° |
| Adjustment range | - |
| Resolution | < 2 mm |
| Supply voltage UB | 10 ... 30 V, DC |
| Number of Connections | - |
| Switching voltage | - |
| Switching output 1 | Transistor, PNP |
| Switching frequency | 2 Hz |
| Interface Type | - |
| Response time | 250 ms |
| Connection 1 Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| No. of Pin | 5 -pin |
| Housing material | Plastic |
| Ambient temperature, operation | -20 ... 70 °C |
| Ambient temperature, storage | -20 ... 70 °C |
| Degree of protection | IP 67 |
Mail Us for your needs in Leuze 2 Hz Switching frequency Ultrasonic Sensors HTU318-1600.3/4PK-M12 50136088 with budget-friendly prices. The Main Technical Parameters of HTU318-1600.3/4PK-M12 include 18 mm x 91.6 mm Dimensions, 0.15 ... 1.6 m Operating Range, 230 kHz Ultrasonic Frequency, 8 ° Opening Angle, Transistor, PNP Switching Output, Connector, M18 x 1 mm Thread size, 5 -pin, Plastic Housing material, IP 67 degree of protection. Customize Your Experience with a Quote for your requirement of Leuze 2 Hz Switching frequency Ultrasonic Sensors. Experience the difference with our competitive pricing and superior support over other Suppliers.
