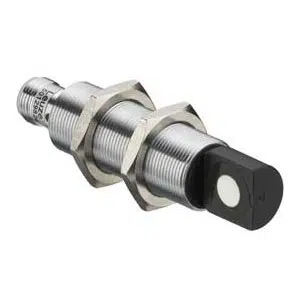

Leuze HTU418B-1300.W/4T4-M12 | 50129827
Technical Specifications of HTU418B-1300.W/4T4-M12 50129827:
| Spec | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M18 x 1 mm |
| Dimensions | 18 mm x 97.8 mm |
| Operating Range | 0.15 ... 1.3 m |
Leuze 90° - Deflection Ultrasonic Sensors HTU418B-1300.W/4T4-M12, 50129827 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M18 x 1 mm |
| Dimension | 18 mm x 97.8 mm |
| Operating range | 0.15 ... 1.3 m |
| Operating principle | Diffuse reflection principle with background suppression |
| Ultrasonic frequency | 200 kHz |
| Opening angle | 16 ° |
| Adjustment range | - |
| Resolution | - |
| Supply voltage UB | 15 ... 30 V, DC |
| Number of Connections | - |
| Switching voltage | low: ≤ 2.5 V |
| Switching output 1 | Transistor, PNP |
| Switching frequency | 8 Hz |
| Interface Type | - |
| Response time | 62 ms |
| Connection 1 Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| No. of Pin | 5 -pin |
| Housing material | Metal |
| Ambient temperature, operation | -25 ... 70 °C |
| Ambient temperature, storage | -30 ... 85 °C |
| Degree of protection | IP 67 IP 68 |
Send Us an Email for Leuze 90° - Deflection Ultrasonic Sensors HTU418B-1300.W/4T4-M12 50129827 with the special pricing. Engineering Specifications of HTU418B-1300.W/4T4-M12 detail 18 mm x 97.8 mm Dimensions, 0.15 ... 1.3 m Operating Range, 200 kHz Ultrasonic Frequency, 16 ° Opening Angle, Transistor, PNP Switching Output, Connector, M18 x 1 mm Thread size, 5 -pin, Metal Housing material, IP 67 IP 68 degree of protection. It's Time to get a Quote for your requirement of Leuze 90° - Deflection Ultrasonic Sensors. We excel in offering more cost-effective and supportive solutions than other Dealers.
