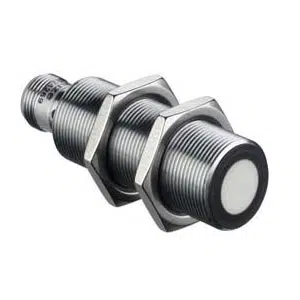

Leuze HTU418B-400/PTX-M12 | 50127764
Technical Specifications of HTU418B-400/PTX-M12 50127764:
| Spec | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M18 x 1 mm |
| Dimensions | 18 mm x 63 mm |
| Operating Range | 0.025 ... 0.4 m |
Leuze Multiplex operation Ultrasonic Sensors HTU418B-400/PTX-M12, 50127764 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M18 x 1 mm |
| Dimension | 18 mm x 63 mm |
| Operating range | 0.025 ... 0.4 m |
| Operating principle | Diffuse reflection principle with background suppression |
| Ultrasonic frequency | 310 kHz |
| Opening angle | 9 ° |
| Adjustment range | - |
| Resolution | - |
| Supply voltage UB | 15 ... 30 V, DC |
| Number of Connections | - |
| Switching voltage | low: ≤ 2.5 V |
| Switching output 1 | Transistor, PNP |
| Switching frequency | 7 Hz |
| Interface Type | - |
| Response time | 71 ms |
| Connection 1 Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| No. of Pin | 5 -pin |
| Housing material | Metal |
| Ambient temperature, operation | -25 ... 70 °C |
| Ambient temperature, storage | -25 ... 70 °C |
| Degree of protection | IP 67 IP 68 |
IndMALL Automation Offers Leuze Multiplex Operation Ultrasonic Sensors HTU418B-400/PTX-M12 50127764 at unbeatable prices. The Main Technical Parameters of HTU418B-400/PTX-M12 are 18 mm x 63 mm Dimensions, 0.025 ... 0.4 m Operating Range, 310 kHz Ultrasonic Frequency, 9 ° Opening Angle, Transistor, PNP Switching Output, Connector, M18 x 1 mm Thread size, 5 -pin Metal Housing material, IP 67 IP 68 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze Multiplex operation Ultrasonic Sensors.
