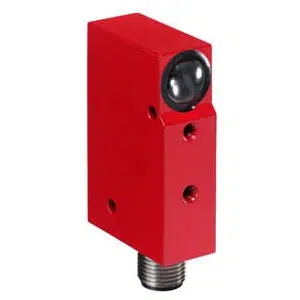

Leuze IPRK 18/A L.46 | 50040278
Technical Specifications of Leuze IPRK 18/A L.46 50040278:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0 ... 2.4 m |
| Light Source | LED, Red |
Leuze teach input, warning output, autocollimation retro-reflective sensor IPRK 18/A L.46 - 50040278 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of highly transparent bottles Detection of highly transparent films and glass panes |
| Special version | Autocollimation Tracking function Warning output |
| Sensing Distance | 0 ... 2.4 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 660 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 26.5 ... 31.6 V |
| Switching Output 1 | - |
| Switching principle | - |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | AS-i interface Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Stainless steel |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 15 mm x 50 mm x 33 mm |
| Housing material | Metal |
| Metal housing | Zinc |
| Lens cover material | Glass |
| Housing color | Red |
| Type of display | LED |
| Operational controls | Step switch |
| Ambient temperature, operation | -25 ... 55 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 / IP 69K |
Get A Quote for Leuze AS-i interface and Voltage supply retro-reflective sensor IPRK 18/A L.46 part no: 50040278 at the best price. Here are the brief Technical Specifications of IPRK 18/A L.46, 50040278 are Cubic, Design Reflection principle, 15 mm x 50 mm x 33 mm Dimension, LED, Red Light source, - Switching Outputs 1, - Switching principle, 26.5 ... 31.6 V Supply voltage UB, 0 ... 2.4 m Sensing Distance, 4 -pin No. of pins, Metal Housing material, IP 67 / IP 69K degree of protection. It's Time to get a Quote for your requirement of Leuze AS-i interface and Voltage supply retro-reflective sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
