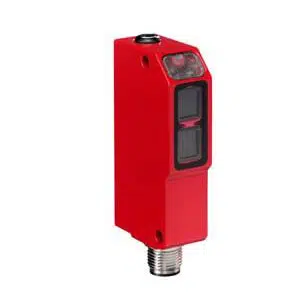

Leuze IPRK 95/44 L.21 | 50102613
Technical Specifications of Leuze IPRK 95/44 L.21 50102613:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0 ... 4.2 m |
| Light Source | LED, Red |
Leuze 4.2 m Operating range retro-reflective photoelectric sensor IPRK 95/44 L.21 - 50102613 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | Autocollimation Warning output |
| Sensing Distance | 0 ... 4.2 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 660 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP / Transistor, PNP |
| Switching principle | Dark switching/UB switching |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Stainless steel |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 17 mm x 66 mm x 35 mm |
| Housing material | Metal |
| Metal housing | Zinc |
| Lens cover material | Glass |
| Housing color | Red |
| Type of display | LED |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -25 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
Ask for the Pricing of Leuze 4.2 m Operating range retro-reflective photoelectric sensor IPRK 95/44 L.21 part no: 50102613 at unbeatable prices. Detailed Specifications of IPRK 95/44 L.21, 50102613 feature Cubic, Design Reflection principle, 17 mm x 66 mm x 35 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC Supply voltage UB, 0 ... 4.2 m Sensing Distance, 5 -pin No. of pins, Metal Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 4.2 m Operating range retro-reflective photoelectric sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
