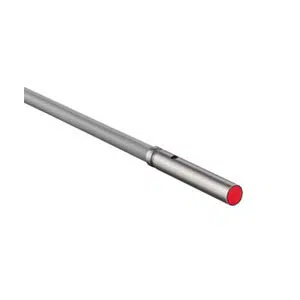

IS 104MP/2NO-1E2: 50133810 - Leuze Embedded Inductive Switch
Technical Specifications of Leuze IS 104MP/2NO-1E2 50133810:
| Spec | Value |
|---|---|
| Sensing Distance | 1.2 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, NPN |
| Switching Principle | NO (normally open) |
Leuze Embedded Inductive Switch IS 104MP/2NO-1E2, 50133810 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 104 |
| Sensing Distance | 1.2 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 100 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, NPN |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 2,000 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2m Length |
| Number of conductors or Pins | 3 -wire Conductors |
| Design | Cylindrical |
| Dimension (Ø x L) | 4 mm x 26 mm |
| Type of installation | Embedded |
| Housing material | Stainless steel |
| Sensing face material | Plastic, Polyoxymethylene (POM) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 4 x 4 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
IndMALL Automation Dealing offers Leuze Embedded Inductive Switch IS 104MP/2NO-1E2 part no: 50133810 at unbeatable prices. The Main Technical Parameters of IS 104MP/2NO-1E2, 50133810 feature 104 series, 1.2 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 100 mA max. current, Transistor, NPN , NO (normally open) , 2,000 Hz, 1 Piece(s) Connection, PVC Cable, 2m Length, 3 -wire Conductors, Cylindrical, 4 mm x 26 mm dimentions, Embedded, Stainless steel, Plastic, Polyoxymethylene (POM), Red, RAL 3000; Silver color, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze Embedded Inductive Switch. Choose us for unparalleled pricing and support over other Dealers & Distributors.
