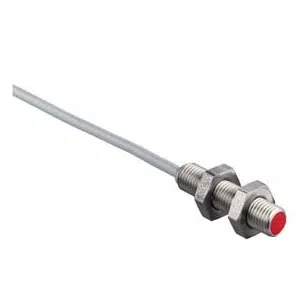

IS 108 MM/2NC-2E0: 50129927 - Leuze PVC Cable Inductive Switch
Technical Specifications of Leuze IS 108 MM/2NC-2E0 50129927:
| Spec | Value |
|---|---|
| Sensing Distance | 2 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, NPN |
| Switching Principle | NC (normally closed) |
Leuze PVC Cable Inductive Switch IS 108 MM/2NC-2E0, 50129927 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 108 |
| Sensing Distance | 2 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 100 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, NPN |
| Switching Principle | NC (normally closed) |
| Switching frequency, max. | 3,000 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2m Length |
| Number of conductors or Pins | 3 -wire Conductors |
| Design | Cylindrical |
| Dimension (Ø x L) | 8 mm x 45 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polyoxymethylene (POM) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 8 x 8 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Mail Us for your needs in Leuze PVC Cable Inductive Switch IS 108 MM/2NC-2E0 part no: 50129927 with budget-friendly prices. The Main Technical Parameters of IS 108 MM/2NC-2E0, 50129927 feature 108 series, 2 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 100 mA max. current, Transistor, NPN , NC (normally closed) , 3,000 Hz, 1 Piece(s) Connection, PVC Cable, 2m Length, 3 -wire Conductors, Cylindrical, 8 mm x 45 mm dimensions, Embedded, Metal, Plastic, Polyoxymethylene (POM), Red, RAL 3000; Silver color, IP 67 degree of protection. Customize Your Experience with a Quote for your requirement of Leuze PVC Cable Inductive Switch. Experience the difference with our competitive pricing and superior support over other Suppliers.
