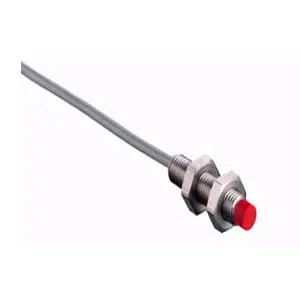

IS 108 MM/4NO-4N0: 50129924 - Leuze Non-Embedded Inductive Switch
Technical Specifications of Leuze IS 108 MM/4NO-4N0 50129924:
| Spec | Value |
|---|---|
| Sensing Distance | 4 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
Leuze Non-Embedded Inductive Switch IS 108 MM/4NO-4N0, 50129924 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 108 |
| Sensing Distance | 4 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 100 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 1,000 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2m Length |
| Number of conductors or Pins | 3 -wire Conductors |
| Design | Cylindrical |
| Dimension (Ø x L) | 8 mm x 45 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polyoxymethylene (POM) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 12 x 12 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Call us forLeuze Non-Embedded Inductive Switch IS 108 MM/4NO-4N0 part no: 50129924 at the best rates. The Main Technical Parameters of IS 108 MM/4NO-4N0, 50129924 feature 108 series, 4 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 100 mA max. current, Transistor, PNP, NO (normally open) , 1,000 Hz, 1 Piece(s) Connection, PVC Cable, 2m Length, 3 -wire Conductors, Cylindrical, 8 mm x 45 mm dimensions, Non-embedded, Metal, Plastic, Polyoxymethylene (POM), Red, RAL 3000; Silver color, IP 67 degree of protection. at the best rates of Leuze Non-Embedded Inductive Switch. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
