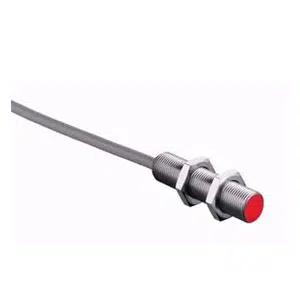

IS 112 MM/4NC-6E0: 50129871 - Leuze PNP NC Transistor Inductive Switch
Technical Specifications of Leuze IS 112 MM/4NC-6E0 50129871:
| Spec | Value |
|---|---|
| Sensing Distance | 6 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, PNP |
| Switching Principle | NC (normally closed) |
Leuze PNP NC Transistor Inductive Switch IS 112 MM/4NC-6E0, 50129871 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 112 |
| Sensing Distance | 6 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NC (normally closed) |
| Switching frequency, max. | 500 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2,000 mm Length |
| Number of conductors or Pins | 3 -wire |
| Design | Cylindrical |
| Dimension (Ø x L) | 12 mm x 50 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 18 x 18 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Call us forLeuze PNP NC Transistor Inductive Switch IS 112 MM/4NC-6E0 part no: 50129871 at the best rates. The Main Technical Parameters of IS 112 MM/4NC-6E0, 50129871 feature 112 series, 6 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP, NC (normally closed) , 500 Hz, 1 Piece(s) Connection, PVC Cable, 2,000 mm Length, 3 -wire, Cylindrical, 12 mm x 50 mm dimensions, Embedded, Metal, Plastic, Polybutylene (PBT), Red, RAL 3000; Silver color, IP 67 degree of protection. at the best rates of Leuze PNP NC Transistor Inductive Switch. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
