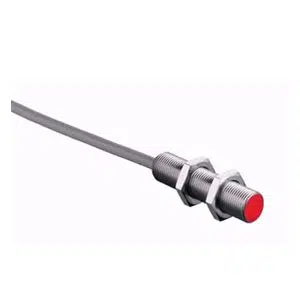

IS 112 MM/4NO-6E0: 50129870 - Leuze Black Color Wire Inductive Switch
Technical Specifications of Leuze IS 112 MM/4NO-6E0 50129870:
| Spec | Value |
|---|---|
| Sensing Distance | 6 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
Leuze Black Color Wire Inductive Switch IS 112 MM/4NO-6E0, 50129870 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 112 |
| Sensing Distance | 6 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 800 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2,000 mm Length |
| Number of conductors or Pins | 3 -wire |
| Design | Cylindrical |
| Dimension (Ø x L) | 12 mm x 50 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 18 x 18 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Ask for the Pricing of Leuze Black Color Wire Inductive Switch IS 112 MM/4NO-6E0 part no: 50129870 at unbeatable prices. Detailed Specifications of IS 112 MM/4NO-6E0, 50129870 feature 112 series, 6 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP , NO (normally open) , 800 Hz, 0.01 mA max. ≤ 2 V, 1 Piece(s) Connection, PVC Cable, 2,000 mm Length, 3 -wire, Cylindrical, 12 mm x 50 mm dimensions, Embedded, Metal, Plastic, Polybutylene (PBT), Red, RAL 3000; Silver color, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze Black Color Wire Inductive Switch. We're committed to offering more favorable pricing and more responsive support than other Traders.
