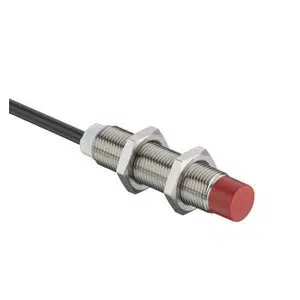

IS 112 MM/4NO-8N0: 50129874 - Leuze 6.4mm Operating Range Switch
Technical Specifications of Leuze IS 112 MM/4NO-8N0 50129874:
| Spec | Value |
|---|---|
| Sensing Distance | 8 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
Leuze 6.4mm Operating Range Switch IS 112 MM/4NO-8N0, 50129874 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 112 |
| Sensing Distance | 8 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 500 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2,000 mm Length |
| Number of conductors or Pins | 3 -wire |
| Design | Cylindrical |
| Dimension (Ø x L) | 12 mm x 50 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 24 x 24 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Get A Quote for Leuze 6.4mm Operating Range Switch IS 112 MM/4NO-8N0 part no: 50129874 at the best price. Here are the brief Technical Specifications of IS 112 MM/4NO-8N0, 50129874 feature 112 series, 8 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP , NO (normally open) , 500 Hz, 1 Piece(s) Connection, PVC Cable, 2,000 mm Length, 3 -wire, Cylindrical, 12 mm x 50 mm dimentions, Non-embedded, Metal, Plastic, Polybutylene (PBT), Red, RAL 3000; Silver color, IP 67 degree of protection. It's Time to get a Quote for your requirement of Leuze 6.4mm Operating Range Switch. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
