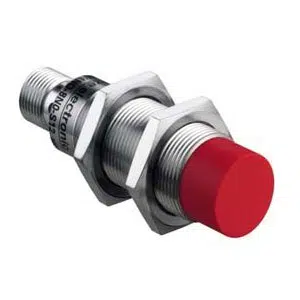

IS 118MM/2NC-16N-M12: 50129984 - Leuze Transistor NC Inductive Switch
Technical Specifications of Leuze IS 118MM/2NC-16N-M12 50129984:
| Spec | Value |
|---|---|
| Sensing Distance | 16 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, PNP |
| Switching Principle | NC (normally closed) |
Leuze Transistor NC Inductive Switch IS 118MM/2NC-16N-M12, 50129984 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 118 |
| Sensing Distance | 16 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NC (normally closed) |
| Switching frequency, max. | 500 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Ø x L) | 18 mm x 79 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 48 x 48 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Ask for the Pricing of Leuze Transistor NC Inductive Switch IS 118MM/2NC-16N-M12 part no: 50129984 at unbeatable prices. Detailed Specifications of IS 118MM/2NC-16N-M12, 50129984 feature 118 series, 16 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP , NC (normally closed) , 500 Hz, 0.01 mA max. ≤ 2 V, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cylindrical, 18 mm x 79 mm dimensions, Non-embedded, Metal, Plastic, Polybutylene (PBT), Red, RAL 3000; Silver color, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze Transistor NC Inductive Switch. We're committed to offering more favorable pricing and more responsive support than other Traders.
