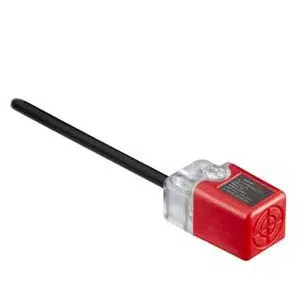

IS 122PP/4NO-5E0: 50130022 - Leuze Cubic Embedded Inductive Switch
Technical Specifications of Leuze IS 122PP/4NO-5E0 50130022:
| Spec | Value |
|---|---|
| Sensing Distance | 5 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
Leuze Cubic Embedded Inductive Switch IS 122PP/4NO-5E0, 50130022 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 122 |
| Sensing Distance | 5 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 500 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2m Length |
| Number of conductors or Pins | 3 -wire |
| Design | Cylindrical |
| Dimension (Ø x L) | 18 mm x 18 mm x 34.3 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000; Transparent |
| Standard measuring plate | 15 x 15 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Obtain a Quote for Leuze Cubic Embedded Inductive Switch IS 122PP/4NO-5E0 part no: 50130022 at economical prices. Specifications Overview for IS 122PP/4NO-5E0, 50130022 feature 122 series, 5 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP , NO (normally open) , 500 Hz, 0.01 mA max. ≤ 2 V, 1 Piece(s) Connection, PVC Cable, 2m Length, 3 -wire, Cylindrical, 18 mm x 18 mm x 34.3 mm dimensions, Embedded, Plastic, Plastic, Polybutylene (PBT), Red, RAL 3000; Transparent color, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze Cubic Embedded Inductive Switch. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
