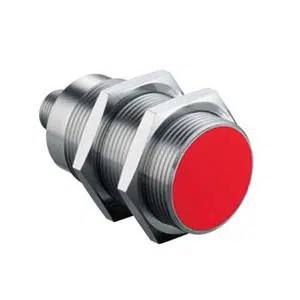

IS 130 MM/4NC-10E-M12: 50129999 - Leuze 8.1 mm Operating Range Switch
Technical Specifications of Leuze IS 130 MM/4NC-10E-M12 50129999:
| Spec | Value |
|---|---|
| Sensing Distance | 10 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, PNP |
| Switching Principle | NC (normally closed) |
Leuze 8.1 mm Operating Range Switch IS 130 MM/4NC-10E-M12, 50129999 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 130 |
| Sensing Distance | 10 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NC (normally closed) |
| Switching frequency, max. | 300 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Ø x L) | 30 mm x 79 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 30 x 30 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Send Your Inquiry for Leuze 8.1 mm Operating Range Switch IS 130 MM/4NC-10E-M12 part no: 50129999with cost-effective solutions. Essential Technical Specs of IS 130 MM/4NC-10E-M12, 50129999 feature 130 series, 10 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP , NC (normally closed) , 300 Hz, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cylindrical, 30 mm x 79 mm dimensions, Embedded, Metal, Plastic, Polybutylene (PBT), Red, RAL 3000; Silver color, IP 67 degree of protection. Capture the Best Deal with a Quote for your requirement of Leuze 8.1 mm Operating Range Switch. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
