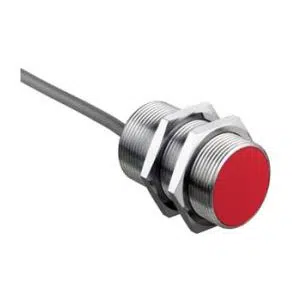

IS 130MM/4NO-16E: 50136060 - Leuze Embedded M30 Proximity Switch
Technical Specifications of Leuze IS 130MM/4NO-16E 50136060:
| Spec | Value |
|---|---|
| Sensing Distance | 16 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
Leuze Embedded M30 Proximity Switch IS 130MM/4NO-16E, 50136060 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 130 |
| Sensing Distance | 16 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 300 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2m Length |
| Number of conductors or Pins | 3 -wire |
| Design | Cylindrical |
| Dimension (Ø x L) | 30 mm x 60 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 48 x 48 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Call us forLeuze Embedded M30 Proximity Switch IS 130MM/4NO-16E part no: 50136060 at the best rates. The Main Technical Parameters of IS 130MM/4NO-16E, 50136060 feature 130 series, 16 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP, NO (normally open) , 300 Hz, 1 Piece(s) Connection, PVC Cable, 2m Length, 3 -wire, Cylindrical, 30 mm x 60 mm dimensions, Embedded, Metal, Plastic, Polybutylene (PBT), Red, RAL 3000; Silver color, IP 67 degree of protection. at the best rates of Leuze Embedded M30 Proximity Switch. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
