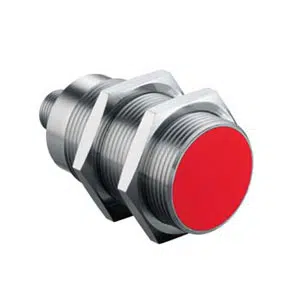

IS 130MM/4NO-16E-M12: 50136066 - Leuze 16mm Cylindrical Inductive Switch
Technical Specifications of Leuze IS 130MM/4NO-16E-M12 50136066:
| Spec | Value |
|---|---|
| Sensing Distance | 16 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
Leuze 16mm Cylindrical Inductive Switch IS 130MM/4NO-16E-M12, 50136066 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 130 |
| Sensing Distance | 16 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 300 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Ø x L) | 30 mm x 79 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 48 x 48 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Send Your Inquiry for Leuze 16mm Cylindrical Inductive Switch IS 130MM/4NO-16E-M12 part no: 50136066with cost-effective solutions. Essential Technical Specs of IS 130MM/4NO-16E-M12, 50136066 feature 130 series, 16 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP , NO (normally open) , 300 Hz, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cylindrical, 30 mm x 79 mm dimensions, Embedded, Metal, Plastic, Polybutylene (PBT), Red, RAL 3000; Silver color, IP 67 degree of protection. Capture the Best Deal with a Quote for your requirement of Leuze 16mm Cylindrical Inductive Switch. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
