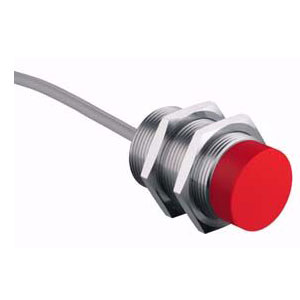

IS 130MM/4NO-25N: 50134106 - Leuze 60mm Length Cylindrical Switch
Technical Specifications of Leuze IS 130MM/4NO-25N 50134106:
| Spec | Value |
|---|---|
| Sensing Distance | 25 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
Leuze 60mm Length Cylindrical Switch IS 130MM/4NO-25N, 50134106 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 130 |
| Sensing Distance | 25 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 300 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2m Length |
| Number of conductors or Pins | 3 -wire |
| Design | Cylindrical |
| Dimension (Ø x L) | 30 mm x 60 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 75 x 75 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Mail Us for your needs in Leuze 60mm Length Cylindrical Switch IS 130MM/4NO-25N part no: 50134106 with budget-friendly prices. The Main Technical Parameters of IS 130MM/4NO-25N, 50134106 feature 130 series, 25 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP , NO (normally open) , 300 Hz, 1 Piece(s) Connection, PVC Cable, 2m Length, 3 -wire, Cylindrical, 30 mm x 60 mm dimensions, Non-embedded, Metal, Plastic, Polybutylene (PBT), Red, RAL 3000; Silver color, IP 67 degree of protection. Customize Your Experience with a Quote for your requirement of Leuze 60mm Length Cylindrical Switch. Experience the difference with our competitive pricing and superior support over other Suppliers.
