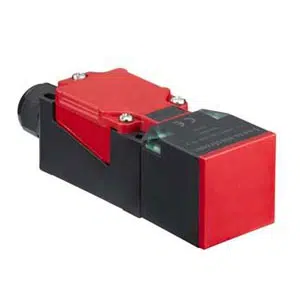

IS 144 PP/2NC-20E-TB.4: 50130013 - Leuze 20 mm Cubic Inductive Switch
Technical Specifications of Leuze IS 144 PP/2NC-20E-TB.4 50130013:
| Spec | Value |
|---|---|
| Sensing Distance | 20 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, NPN |
| Switching Principle | NC (normally closed) |
Leuze 20 mm Cubic Inductive Switch IS 144 PP/2NC-20E-TB.4, 50130013 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 144 |
| Sensing Distance | 20 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, NPN |
| Switching Principle | NC (normally closed) |
| Switching frequency, max. | 300 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | Terminal |
| Number of conductors or Pins | 4 -pin |
| Design | Cubic |
| Dimension (Ø x L) | 115 mm x 40 mm x 140 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Black Red, RAL 3000 |
| Standard measuring plate | 60 x 60 mm², Fe360 |
| Number of LEDs | 2 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Obtain a Quote for Leuze 20 mm Cubic Inductive Switch IS 144 PP/2NC-20E-TB.4 part no: 50130013 at economical prices. Specifications Overview for IS 144 PP/2NC-20E-TB.4, 50130013 feature 144 series, 20 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, NPN , NC (normally closed) , 300 Hz, 0.01 mA max. ≤ 2 V, 1 Piece(s) Connection, Terminal, 4 -pin, Cubic, 115 mm x 40 mm x 140 mm dimensions, Embedded, Plastic, Plastic, Polybutylene (PBT), Black Red, RAL 3000 color, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze 20 mm Cubic Inductive Switch. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
