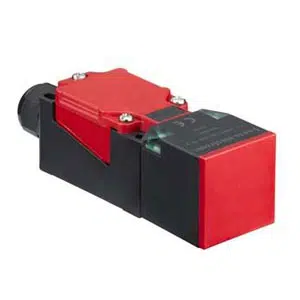

IS 144 PP/2NO-40N-TB.4: 50130016 - Leuze 100 HZ Frequency Switch
Technical Specifications of Leuze IS 144 PP/2NO-40N-TB.4 50130016:
| Spec | Value |
|---|---|
| Sensing Distance | 40 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, NPN |
| Switching Principle | NO (normally open) |
Leuze 100 HZ Frequency Switch IS 144 PP/2NO-40N-TB.4, 50130016 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 144 |
| Sensing Distance | 40 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, NPN |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | Terminal |
| Number of conductors or Pins | 4 -pin |
| Design | Cubic |
| Dimension (Ø x L) | 115 mm x 40 mm x 140 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Black Red, RAL 3000 |
| Standard measuring plate | 60 x 60 mm², Fe360 |
| Number of LEDs | 2 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Call us forLeuze 100 HZ Frequency Switch IS 144 PP/2NO-40N-TB.4 part no: 50130016 at the best rates. The Main Technical Parameters of IS 144 PP/2NO-40N-TB.4, 50130016 feature 144 series, 40 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, NPN, NO (normally open) , 100 Hz, 1 Piece(s) Connection, Terminal, 4 -pin, Cubic, 115 mm x 40 mm x 140 mm dimensions, Non-embedded, Plastic, Plastic, Polybutylene (PBT), Black Red, RAL 3000 color, IP 67 degree of protection. at the best rates of Leuze 32mm Operating Range Switch. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
