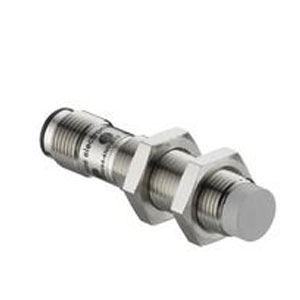

IS 212FM/4NO.5-3E0: 50128176 - Leuze 3-wire Cylindrical Inductive Switch
Technical Specifications of Leuze 3-wire Cylindrical Inductive Switch IS 212FM/4NO.5-3E0:
| Spec | Value |
|---|---|
| Sensing Distance | w mm |
| Switching Output | Transistor, PNP |
| TYpe of Installation | Embedded |
| Type of Connection | PUR Cable, 2m Length |
Leuze 3-wire Cylindrical Inductive Switch IS 212FM/4NO.5-3E0, 50128176 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 212 |
| Sensing Distance | w mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.01 mA |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NO (normally open) |
| O/P 2: Switching Output | - |
| O/P 2: Switching Principle | - |
| Switching frequency, max. | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PUR Cable, 2m Length |
| Number of conductors or Pins | 3 -wire |
| Design | Cylindrical |
| Dimension (Ø x L) | 12 mm x 50 mm |
| Type of installation | Embedded |
| Housing material | Stainless steel |
| Sensing face material | Stainless steel, AISI 303 |
| Housing color | Silver |
| Standard measuring plate | 12 x 12 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 70 °C |
| Degree of protection | IP 68 IP 69K |
Please speak to our Technical Engineer for Leuze 3-wire Cylindrical Inductive Switch IS 212FM/4NO.5-3E0 part no: 50128176 at attractive prices. Technical Specs Summary of IS 212FM/4NO.5-3E0, 50128176 includes 212 series, w mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA current, Transistor, PNP, NO (normally open) output, 100 Hz, 1 Piece(s) Connection, PUR Cable, 2m Length, 3 -wire, Cylindrical, 12 mm x 50 mm dimentions, Embedded, Stainless steel, AISI 303, 1 Piece(s) LEDs, Silver color, IP 68 IP 69K degree of protection. Match Your Needs with a Quote for your requirement of Leuze 3-wire Cylindrical Inductive Switch. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
