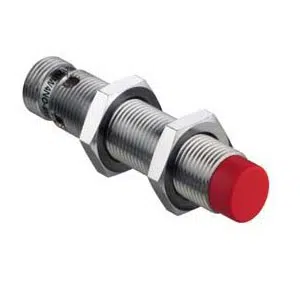

IS 212MM/4NC-4N0-S12: 50112914 - Leuze M12 Non-embedded Inductive Switch
Technical Specifications of Leuze M12 Non-embedded Inductive Switch IS 212MM/4NC-4N0-S12:
| Spec | Value |
|---|---|
| Sensing Distance | 4mm |
| Switching Output | Transistor, PNP |
| TYpe of Installation | Non-embedded |
| Type of Connection | M12 Connector |
Leuze M12 Non-embedded Inductive Switch IS 212MM/4NC-4N0-S12, 50112914 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 212 |
| Sensing Distance | 4mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.01 mA |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NC (normally closed) |
| O/P 2: Switching Output | - |
| O/P 2: Switching Principle | - |
| Switching frequency, max. | 2,000 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Ø x L) | 12 mm x 60 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000, Silver |
| Standard measuring plate | 12 x 12 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 70 °C Operation: -25 ... 70 °C |
| Degree of protection | IP 67 |
Obtain a Quote for Leuze M12 Non-embedded Inductive Switch IS 212MM/4NC-4N0-S12 part no: 50112914 with exclusive offers. Core System Specifications of IS 212MM/4NC-4N0-S12, 50112914 feature 212 series, 4mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA current, Transistor, PNP, NC (normally closed) output, 2,000 Hz, 1 Piece(s) Connection, M12 Connector , 4 -pin, Cylindrical, 12 mm x 60 mm dimentions, Non-embedded, Plastic, Polybutylene (PBT), 1 Piece(s) LEDs, Red, RAL 3000, Silver color, IP 67 degree of protection. Initiate Your Journey with a Quote for your requirement of Leuze M12 Non-embedded Inductive Switch. Trust in our ability to provide more advantageous pricing and dedicated support beyond other Suppliers & Traders.
