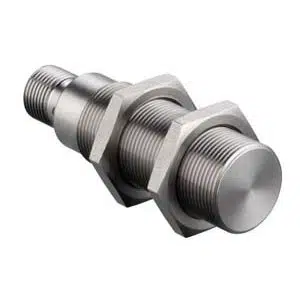

IS 218FM/4NO.5-5E0-S12: 50128169 - Leuze 63.5 mm Length Inductive Switch
Technical Specifications of Leuze 63.5 mm Length Inductive Switch IS 218FM/4NO.5-5E0-S12:
| Spec | Value |
|---|---|
| Sensing Distance | 5 mm |
| Switching Output | Transistor, PNP |
| TYpe of Installation | Embedded |
| Type of Connection | M12 Connector |
Leuze 63.5 mm Length Inductive Switch IS 218FM/4NO.5-5E0-S12, 50128169 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 218 |
| Sensing Distance | 5 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.01 mA |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NO (normally open) |
| O/P 2: Switching Output | - |
| O/P 2: Switching Principle | - |
| Switching frequency, max. | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Ø x L) | 18 mm x 63.5 mm |
| Type of installation | Embedded |
| Housing material | Stainless steel |
| Sensing face material | Stainless steel, AISI 306 |
| Housing color | Silver |
| Standard measuring plate | 18 x 18 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 70 °C |
| Degree of protection | IP 68 IP 69K |
Send Your Inquiry for Leuze 63.5 mm Length Inductive Switch IS 218FM/4NO.5-5E0-S12 part no: 50128169 with cost-effective solutions. Essential Technical Specs of IS 218FM/4NO.5-5E0-S12, 50128169 are 218 series, 5 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA current, Transistor, PNP, NO (normally open) output, 100 Hz, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cylindrical, 18 mm x 63.5 mm dimentions, Embedded, Stainless steel, AISI 306, 1 Piece(s) LEDs, Silver color, IP 68 IP 69K degree of protection. Capture the Best Deal with a Quote for your requirement of Leuze 63.5 mm Length Inductive Switch. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
