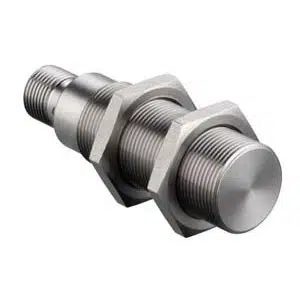

IS 218FM/4NO.5F-10E-S12: 50109732 - Leuze 15 % Switching Hysteresis
Technical Specifications of Leuze 15 % Switching Hysteresis IS 218FM/4NO.5F-10E-S12:
| Spec | Value |
|---|---|
| Sensing Distance | 10 mm |
| Switching Output | Transistor, PNP |
| TYpe of Installation | Embedded |
| Type of Connection | M12 Connector |
Leuze 15 % Switching Hysteresis IS 218FM/4NO.5F-10E-S12, 50109732 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 218 |
| Sensing Distance | 10 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.01 mA |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NO (normally open) |
| O/P 2: Switching Output | - |
| O/P 2: Switching Principle | - |
| Switching frequency, max. | 300 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Ø x L) | 19 mm x 63.5 mm |
| Type of installation | Embedded |
| Housing material | Stainless steel |
| Sensing face material | Stainless steel, AISI 316L |
| Housing color | Silver |
| Standard measuring plate | 30 x 30 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 85 °C Operation: -25 ... 85 °C |
| Degree of protection | IP 68 IP 69K |
Send Your Inquiry for Leuze 15 % Switching Hysteresis IS 218FM/4NO.5F-10E-S12 part no: 50109732 with cost-effective solutions. Essential Technical Specs of IS 218FM/4NO.5F-10E-S12, 50109732 are 218 series, 10 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA current, Transistor, PNP, NO (normally open) output, 300 Hz, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cylindrical, 19 mm x 63.5 mm dimentions, Embedded, Stainless steel, AISI 316L, 1 Piece(s) LEDs, Silver color, IP 68 IP 69K degree of protection. Capture the Best Deal with a Quote for your requirement of Leuze 15 % Switching Hysteresis. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
