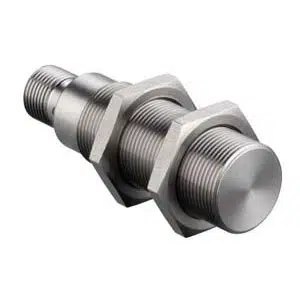

IS 218FM/4NO.5F-20N-S12: 50109734 -Leuze 16.2mm Operating Range Switch
Technical Specifications of Leuze 16.2mm Operating Range Switch IS 218FM/4NO.5F-20N-S12:
| Spec | Value |
|---|---|
| Sensing Distance | 20 mm |
| Switching Output | Transistor, PNP |
| TYpe of Installation | Non-embedded |
| Type of Connection | M12 Connector |
Leuze 16.2mm Operating Range Switch IS 218FM/4NO.5F-20N-S12, 50109734 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 218 |
| Sensing Distance | 20 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.01 mA |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NO (normally open) |
| O/P 2: Switching Output | - |
| O/P 2: Switching Principle | - |
| Switching frequency, max. | 200 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Ø x L) | 18 mm x 63.5 mm |
| Type of installation | Non-embedded |
| Housing material | Stainless steel |
| Sensing face material | Stainless steel, AISI 316L |
| Housing color | Silver |
| Standard measuring plate | 60 x 60 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 85 °C Operation: -25 ... 85 °C |
| Degree of protection | IP 68 IP 69K |
Please speak to our Technical Engineer for Leuze 16.2mm Operating Range Switch IS 218FM/4NO.5F-20N-S12 part no: 50109734 at attractive prices. Technical Specs Summary of IS 218FM/4NO.5F-20N-S12, 50109734 includes 218 series, 20 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA current, Transistor, PNP, NO (normally open) output, 200 Hz, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cylindrical, 18 mm x 63.5 mm dimentions, Non-embedded, Stainless steel, AISI 316L, 1 Piece(s) LEDs, Silver color, IP 68 IP 69K degree of protection. Match Your Needs with a Quote for your requirement of Leuze 16.2mm Operating Range Switch. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
