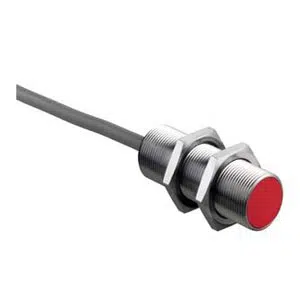

IS 218MM/1NO.3-5E0: 50128152 - Leuze Relay Output Inductive Switch
Technical Specifications of Leuze Relay Output Inductive Switch IS 218MM/1NO.3-5E0:
| Spec | Value |
|---|---|
| Sensing Distance | 5 mm |
| Switching Output | Relay, NO |
| TYpe of Installation | Embedded |
| Type of Connection | PVC Cable, 2,000m Length |
Leuze Relay Output Inductive Switch IS 218MM/1NO.3-5E0, 50128152 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 218 |
| Sensing Distance | 5 mm |
| Supply Voltage | 10 ... 320 V, AC/DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | - |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Relay, NO |
| O/P 1: Switching Principle | NO (normally open) |
| O/P 2: Switching Output | - |
| O/P 2: Switching Principle | - |
| Switching frequency, max. | 1,500 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2,000m Length |
| Number of conductors or Pins | 2 -wire |
| Design | Cylindrical |
| Dimension (Ø x L) | 18 mm x 50 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000, Silver |
| Standard measuring plate | 18 x 18 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 70 °C Operation: -25 ... 70 °C |
| Degree of protection | IP 67 |
Obtain a Quote for Leuze Relay Output Inductive Switch IS 218MM/1NO.3-5E0 part no: 50128152 at economical prices. Specifications Overview for IS 218MM/1NO.3-5E0, 50128152 reveals 218 series, 5 mm Sensing, 10 ... 320 V, AC/DC power supply, 1 Piece(s) digital switching output, 200 mA current, Relay, NO, NO (normally open) output, 1,500 Hz, 1 Piece(s) Connection, PVC Cable, 2,000m Length, 2 -wire, Cylindrical, 18 mm x 50 mm dimentions, Embedded, Plastic, Polybutylene (PBT), 1 Piece(s) LEDs, Red, RAL 3000, Silver color, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze Relay Output Inductive Switch. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
