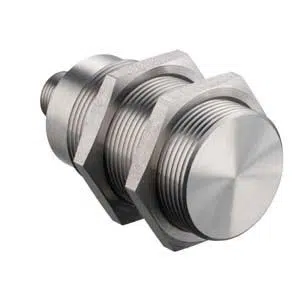

IS 230FM/2NO.5-10E: 50128166 - Leuze 50 HZ Switching Frequency
Technical Specifications of Leuze 50 HZ Switching Frequency IS 230FM/2NO.5-10E:
| Spec | Value |
|---|---|
| Sensing Distance | 10 mm |
| Switching Output | Transistor, NPN |
| TYpe of Installation | Embedded |
| Type of Connection | PUR Cable, 2,000mm Length |
Leuze 50 HZ Switching Frequency IS 230FM/2NO.5-10E, 50128166 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 230 |
| Sensing Distance | 10 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.01 mA |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Transistor, NPN |
| O/P 1: Switching Principle | NO (normally open) |
| O/P 2: Switching Output | - |
| O/P 2: Switching Principle | - |
| Switching frequency, max. | 50 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PUR Cable, 2,000mm Length |
| Number of conductors or Pins | 3 -wire |
| Design | Cylindrical |
| Dimension (Ø x L) | 30 mm x 50 mm |
| Type of installation | Embedded |
| Housing material | Stainless steel |
| Sensing face material | Stainless steel, AISI 303 |
| Housing color | Silver |
| Standard measuring plate | 30 x 30 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 70 °C |
| Degree of protection | IP 68, IP 69K |
Obtain a Quote for Leuze 50 HZ Switching Frequency IS 230FM/2NO.5-10E part no: 50128166 at economical prices. Specifications Overview for IS 230FM/2NO.5-10E, 50128166 reveals 230 series, 10 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA current, Transistor, NPN, NO (normally open) output, 50 Hz, 1 Piece(s) Connection, PUR Cable, 2,000mm Length, 3 -wire, Cylindrical, 30 mm x 50 mm dimentions, Embedded, Stainless steel, AISI 303, 1 Piece(s) LEDs, Silver color, IP 68, IP 69K degree of protection. Take the First Step with a Quote for your requirement of Leuze 50 HZ Switching Frequency. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
