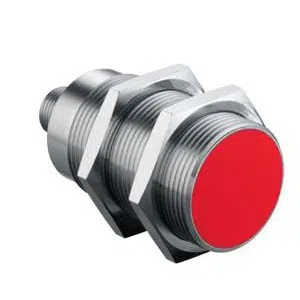

IS 230MM/4NO-22E-S12: 50109721 - Leuze 22mm Sensing Inductive Switch
Technical Specifications of Leuze 22mm Sensing Inductive Switch IS 230MM/4NO-22E-S12:
| Spec | Value |
|---|---|
| Sensing Distance | 22 mm |
| Switching Output | Transistor, PNP |
| TYpe of Installation | Embedded |
| Type of Connection | M12 Connector |
Leuze 22mm Sensing Inductive Switch IS 230MM/4NO-22E-S12, 50109721 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 230 |
| Sensing Distance | 22 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.01 mA |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NO (normally open) |
| O/P 2: Switching Output | - |
| O/P 2: Switching Principle | - |
| Switching frequency, max. | 200 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Ø x L) | 30 mm x 73.5 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000, Silver |
| Standard measuring plate | 66 x 66 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 70 °C Storage: -25 ... 70 °C |
| Degree of protection | IP 67 |
Ask for the Pricing of Leuze 22mm Sensing Inductive Switch IS 230MM/4NO-22E-S12 part no: 50109721 at unbeatable prices. Detailed Specifications of IS 230MM/4NO-22E-S12, 50109721 feature 230 series, 22 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA current, Transistor, PNP, NO (normally open) output, 200 Hz frequency, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cylindrical, 30 mm x 73.5 mm dimentions, Embedded, Plastic, Polybutylene (PBT), 1 Piece(s) LEDs, Red, RAL 3000, Silver color, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 22mm Sensing Inductive Switch. We're committed to offering more favorable pricing and more responsive support than other Traders.
