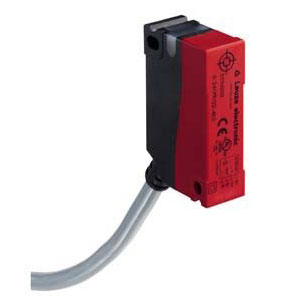

IS 240PP/22-8N0: 50114205 - Leuze 8mm Sensing Cubic Inductive Switch
Technical Specifications of Leuze 8mm Sensing Cubic Inductive Switch IS 240PP/22-8N0:
| Spec | Value |
|---|---|
| Sensing Distance | 8 mm |
| Switching Output | Transistor, NPN |
| TYpe of Installation | Non-embedded |
| Type of Connection | PVC Cable, 2m Length |
Leuze 8mm Sensing Cubic Inductive Switch IS 240PP/22-8N0, 50114205 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 240 |
| Sensing Distance | 8 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 2 Piece(s) |
| Switching Current | 250 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Transistor, NPN |
| O/P 1: Switching Principle | NO contact – Antivalent |
| O/P 2: Switching Output | Transistor, NPN |
| O/P 2: Switching Principle | NO contact – Antivalent |
| Switching frequency, max. | 1,400 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2m Length |
| Number of conductors or Pins | 4 -wire |
| Design | Cubic |
| Dimension (Ø x L) | 12 mm x 40 mm x 26 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Sensing face material | Plastic, Polyamide (PA 66) |
| Housing color | Black, Red, RAL 3000 |
| Standard measuring plate | 12 x 12 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Please speak to our Technical Engineer for Leuze 8mm Sensing Cubic Inductive Switch IS 240PP/22-8N0 part no: 50114205 at attractive prices. Technical Specs Summary of IS 240PP/22-8N0, 50114205 includes 240 series, 8 mm Sensing, 10 ... 30 V, DC power supply, 2 Piece(s) digital switching output, 250 mA max. current, Transistor, NPN , NO contact – Antivalent output 1, Transistor, NPN , NO contact – Antivalent output 2, 1,400 Hz, 1 Piece(s) Connection, PVC Cable, 2m Length, 4 -wire, Cubic, 12 mm x 40 mm x 26 mm dimentions, Non-embedded, Plastic, Polyamide (PA 66), 1 Piece(s) LEDs, Black, Red, RAL 3000 color, IP 67 degree of protection. Match Your Needs with a Quote for your requirement of Leuze 8mm Sensing Cubic Inductive Switch. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
