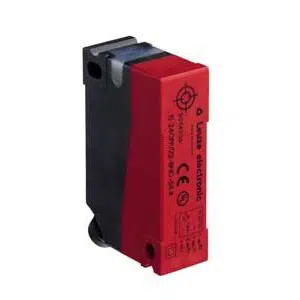

IS 240PP/22-8N0-S8.4: 50114206 - Leuze 2 Outputs Cubic Inductive Switch
Technical Specifications of Leuze 2 Outputs Cubic Inductive Switch IS 240PP/22-8N0-S8.4:
| Spec | Value |
|---|---|
| Sensing Distance | 8 mm |
| Switching Output | Transistor, NPN |
| TYpe of Installation | Non-embedded |
| Type of Connection | M8 Connector |
Leuze 2 Outputs Cubic Inductive Switch IS 240PP/22-8N0-S8.4, 50114206 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 240 |
| Sensing Distance | 8 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 2 Piece(s) |
| Switching Current | 250 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Transistor, NPN |
| O/P 1: Switching Principle | NO contact – Antivalent |
| O/P 2: Switching Output | Transistor, NPN |
| O/P 2: Switching Principle | NO contact – Antivalent |
| Switching frequency, max. | 1,400 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cubic |
| Dimension (Ø x L) | 12 mm x 40 mm x 26 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Sensing face material | Plastic, Polyamide (PA 66) |
| Housing color | Black, Red, RAL 3000 |
| Standard measuring plate | 12 x 12 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Give Us a Call for Leuze 2 Outputs Cubic Inductive Switch IS 240PP/22-8N0-S8.4 part no: 50114206 at the lowest pricing. In-depth Technical Analysis of IS 240PP/22-8N0-S8.4, 50114206 feature 240 series, 8 mm Sensing, 10 ... 30 V, DC power supply, 2 Piece(s) digital switching output, 250 mA max. current, Transistor, NPN , NO contact – Antivalent output 1, Transistor, NPN , NO contact – Antivalent output 2, 1,400 Hz, 1 Piece(s) Connection, M8 Connector, 4 -pin, Cubic, 12 mm x 40 mm x 26 mm dimentions, Non-embedded, Plastic, Polyamide (PA 66), 1 Piece(s) LEDs, Black, Red, RAL 3000 color, IP 67 degree of protection. Elevate Your Project with a Quote for your requirement of Leuze 2 Outputs Cubic Inductive Switch. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
