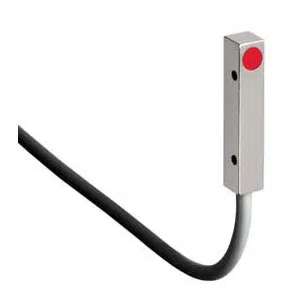

IS 288MP/4NC-2E0: 50113783 - Leuze 2mm NC Cubic Inductive Switch

Technical Specifications of Leuze 2mm NC Cubic Inductive Switch IS 288MP/4NC-2E0:

SpecValue
Sensing Distance2 mm
Switching OutputTransistor, PNP
TYpe of InstallationEmbedded
Type of ConnectionPVC Cable, 2m Length

Leuze 2mm NC Cubic Inductive Switch IS 288MP/4NC-2E0, 50113783 Technical Specifications:

SpecificationValue
Series288
Sensing Distance2 mm
Supply Voltage10 ... 30 V, DC
Number of digital switching outputs1 Piece(s)
Switching Current200 mA max.
Residual Current0.01 mA max.
Voltage drop≤ 2 V
O/P 1: Switching OutputTransistor, PNP
O/P 1: Switching PrincipleNO (normally open)
O/P 2: Switching OutputTransistor, PNP
O/P 2: Switching PrincipleNO contact – Antivalent
Switching frequency, max.5,000 Hz
Number of connections1 Piece(s)
Connection FunctionSignal OUT Voltage supply
Type of ConnectionPVC Cable, 2m Length
Number of conductors or Pins3 -wire
DesignCubic
Dimension (Ø x L)8 mm x 8 mm x 40 mm
Type of installationEmbedded
Housing materialMetal
Sensing face materialPlastic, Polybutylene (PBT)
Housing colorBlack, Red, RAL 3000
Standard measuring plate8 x 8 mm², Fe360
Number of LEDs1 Piece(s)
Ambient temperature-25 ... 70 °C
Degree of protectionIP 67
IndMALL Dealling Leuze 2mm NC Cubic Inductive Switch IS 288MP/4NC-2E0 part no: 50113783 with the special pricing. Technical Specs Summary of IS 288MP/4NC-2E0, 50113783 feature. Our 288 series, 2 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP , NO (normally open) output 1, Transistor, PNP , NO contact – Antivalent output 2, 5,000 Hz, 1 Piece(s) Connection, PVC Cable, 2m Length, 3 -wire, Cubic, 8 mm x 8 mm x 40 mm dimentions, Embedded, Plastic, Polybutylene (PBT), 1 Piece(s) LEDs, Black, Red, RAL 3000 color, IP 67 degree of protection.Match Your Needs with a Quote for your requirement of Leuze 2mm NC Cubic Inductive Switch. Our pricing and support are unrivaled, especially when compared to other Distributors.
