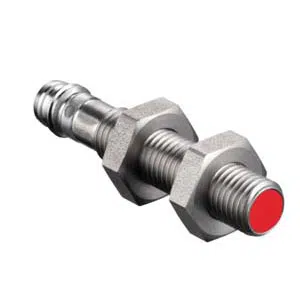

ISS 108MM/4NO-2E0-M8.3: 50134742 - Leuze 3-wire PNP Proximity Sensor
Technical Specifications of Leuze ISS 108MM/4NO-2E0-M8.3 50134742:
| Spec | Value |
|---|---|
| Sensing Distance | 2 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
Leuze 3-wire PNP Proximity Sensor ISS 108MM/4NO-2E0-M8.3, 50134742 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 108 |
| Sensing Distance | 2 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 100 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 2,000 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector |
| Number of conductors or Pins | 3-Pin |
| Design | Cylindrical |
| Dimension (Ø x L) | 8 mm x 45 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polyoxymethylene (POM) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 8 x 8 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Ask for the Pricing of Leuze 3-wire PNP Proximity Sensor ISS 108MM/4NO-2E0-M8.3 part no: 50134742 at unbeatable prices. Detailed Specifications of ISS 108MM/4NO-2E0-M8.3, 50134742 feature 108 series, 2 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 100 mA max. current, Transistor, PNP , NO (normally open) , 2,000 Hz, 1 Piece(s) Connection, M8 Connector, 3-Pin, Cylindrical, 8 mm x 45 mm dimensions, Embedded, Metal, Plastic, Polyoxymethylene (POM), Red, RAL 3000; Silver color, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 3-wire PNP Proximity Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
