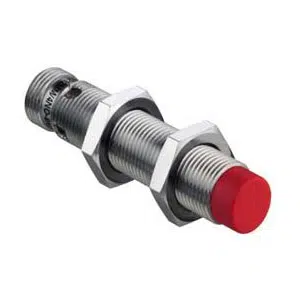

ISS 112MM/4NO-8N0-M12: 50136020 - Leuze M12 Male Connector Switch
Technical Specifications of Leuze ISS 112MM/4NO-8N0-M12 50136020:
| Spec | Value |
|---|---|
| Sensing Distance | 8 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, NPN |
| Switching Principle | NC (normally closed) |
Leuze M12 Male Connector Inductive Switch ISS 112MM/4NO-8N0-M12, 50136020 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 112 |
| Sensing Distance | 8 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, NPN |
| Switching Principle | NC (normally closed) |
| Switching frequency, max. | 500 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Ø x L) | 12 mm x 55 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 24 x 24 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Please speak to our Technical Engineer for Leuze M12 Male Connector Inductive Switch ISS 112MM/4NO-8N0-M12 part no: 50136020at attractive prices. Technical Specs Summary of ISS 112MM/4NO-8N0-M12, 50136020 feature 112 series, 8 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, NPN , NC (normally closed) , 500 Hz, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cylindrical, 12 mm x 55 mm dimensions, Non-embedded, Metal, Plastic, Polybutylene (PBT), Red, RAL 3000; Silver color, IP 67 degree of protection. Match Your Needs with a Quote for your requirement of Leuze M12 Male Connector Inductive Switch. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
