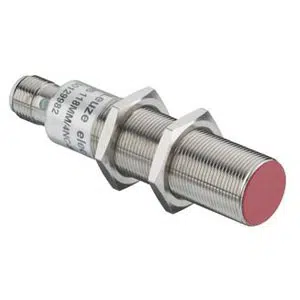

ISS 118MM/4NC-8E0-M12: 50144726 - Leuze Embedded 8mm Sensing Switch
Technical Specifications of Leuze ISS 118MM/4NC-8E0-M12 50144726:
| Spec | Value |
|---|---|
| Sensing Distance | 8 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, PNP |
| Switching Principle | NC (normally closed) |
Leuze Embedded 8mm Sensing Switch ISS 118MM/4NC-8E0-M12, 50144726 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 118 |
| Sensing Distance | 8 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NC (normally closed) |
| Switching frequency, max. | 3,000 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Ø x L) | 18 mm x 48 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 24 x 24 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Get A Quote for Leuze Embedded 8mm Sensing Switch ISS 118MM/4NC-8E0-M12 part no: 50144726 at the best price. Here are the brief Technical Specifications of ISS 118MM/4NC-8E0-M12, 50144726 feature 118 series, 8 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP , NC (normally closed) , 3,000 Hz, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cylindrical, 18 mm x 48 mm dimentions, Embedded, Metal, Plastic, Polybutylene (PBT), Red, RAL 3000; Silver color, IP 67 degree of protection. It's Time to get a Quote for your requirement of Leuze Embedded 8mm Sensing Switch. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
