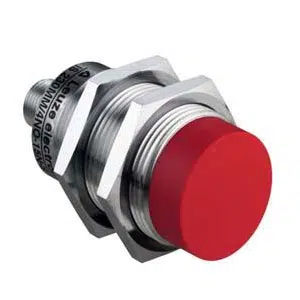

ISS 130MM/4NO-25N-M12:50136049 -Leuze M12 Connector Cylindrical Switch
Technical Specifications of Leuze ISS 130MM/4NO-25N-M12 50136049:
| Spec | Value |
|---|---|
| Sensing Distance | 25 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
Leuze M12 Connector Cylindrical Switch ISS 130MM/4NO-25N-M12, 50136049 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 130 |
| Sensing Distance | 25 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 300 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Ø x L) | 30 mm x 53 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 75 x 75 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Mail Us for your needs in Leuze M12 Connector Cylindrical Switch ISS 130MM/4NO-25N-M12 part no: 50136049 with budget-friendly prices. The Main Technical Parameters of ISS 130MM/4NO-25N-M12, 50136049 feature 130 series, 25 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP , NO (normally open) , 300 Hz, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cylindrical, 30 mm x 53 mm dimensions, Non-embedded, Metal, Plastic, Polybutylene (PBT), Red, RAL 3000; Silver color, IP 67 degree of protection. Customize Your Experience with a Quote for your requirement of Leuze M12 Connector Cylindrical Switch. Experience the difference with our competitive pricing and superior support over other Suppliers.
