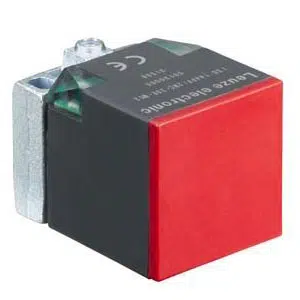

ISS 144 PP/4NC-30N-M12: 50130011 - Leuze M12 Connector Cubic Switch
Technical Specifications of Leuze ISS 144 PP/4NC-30N-M12 50130011:
| Spec | Value |
|---|---|
| Sensing Distance | 30 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, PNP |
| Switching Principle | NC (normally closed) |
Leuze M12 Connector Cubic Switch ISS 144 PP/4NC-30N-M12, 50130011 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 144 |
| Sensing Distance | 30 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NC (normally closed) |
| Switching frequency, max. | 300 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cubic |
| Dimension (Ø x L) | 54 mm x 40 mm x 65 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Black Red, RAL 3000 |
| Standard measuring plate | 90 x 90 mm², Fe360 |
| Number of LEDs | 2 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Talk to Our Engineer for Leuze M12 Connector Cubic Switch ISS 144 PP/4NC-30N-M12 part no: 50130011 with exclusive offers. Core System Specifications ofISS 144 PP/4NC-30N-M12,50130011 feature 144 series, 30 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP , NC (normally closed) , 300 Hz, 0.01 mA max. ≤ 2 V, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cubic, 54 mm x 40 mm x 65 mm dimensions, Non-embedded, Plastic, Plastic, Polybutylene (PBT), Black Red, RAL 3000 color, IP 67 degree of protection. Don't Miss Out on a Quote for your requirement of Leuze M12 Connector Cubic Switch. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
