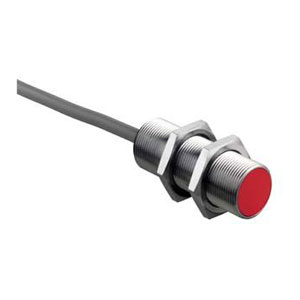

ISS 218MM/4NC-8E0-200-S12: 50135195 - Leuze 8mm PNP NC Cylindrical Switch
Technical Specifications of Leuze 8mm PNP NC Cylindrical Switch ISS 218MM/4NC-8E0-200-S12:
| Spec | Value |
|---|---|
| Sensing Distance | 8 mm |
| Switching Output | Transistor, PNP |
| TYpe of Installation | Embedded |
| Type of Connection | PVC Cable, 2,000m Length |
Leuze 8mm PNP NC Cylindrical Switch ISS 218MM/4NC-8E0-200-S12, 50135195 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 218 |
| Sensing Distance | 8 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.01 mA |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NC (normally closed) |
| O/P 2: Switching Output | - |
| O/P 2: Switching Principle | - |
| Switching frequency, max. | 1,500 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2,000m Length |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Ø x L) | 18 mm x 35 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000 Silver |
| Standard measuring plate | 24 x 24 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 70 °C Operation: -25 ... 70 °C |
| Degree of protection | IP 67 |
Reach Us by Email for Leuze 8mm PNP NC Cylindrical Switch ISS 218MM/4NC-8E0-200-S12 part no: 50135195 at Discounted Rates. Key Technical Features of ISS 218MM/4NC-8E0-200-S12, 50135195 are 218 series, 8 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA current, Transistor, PNP, NC (normally closed) output, 1,500 Hz, 1 Piece(s) Connection, PVC Cable, 2,000m Length, 4 -pin, Cylindrical, 18 mm x 35 mm dimentions, Embedded, Plastic, Polybutylene (PBT), 1 Piece(s) LEDs, Red, RAL 3000
Silver color, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze 8mm PNP NC Cylindrical Switch. Our pricing and support are unrivaled, especially when compared to other Competitors.
